Beskrivelse
UN USED ITEM IN BOX
STORED DRY

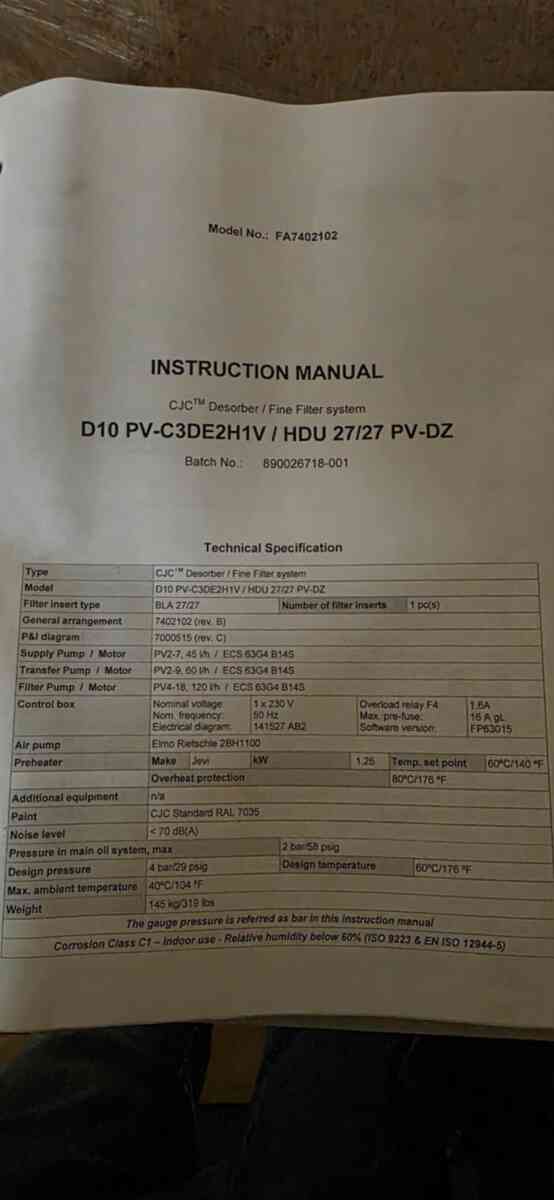

Technical Spesification

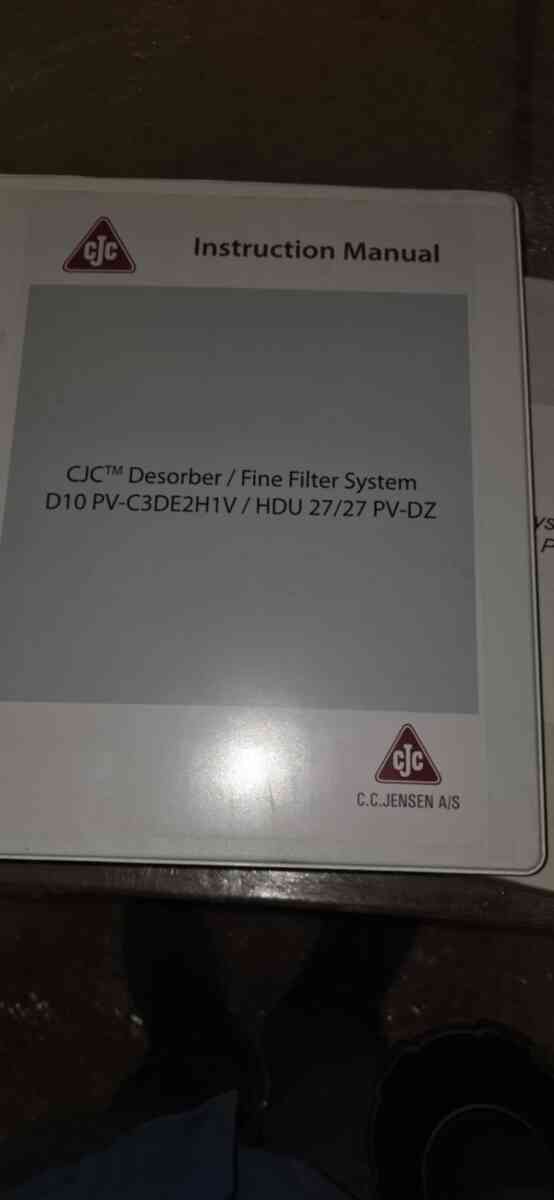

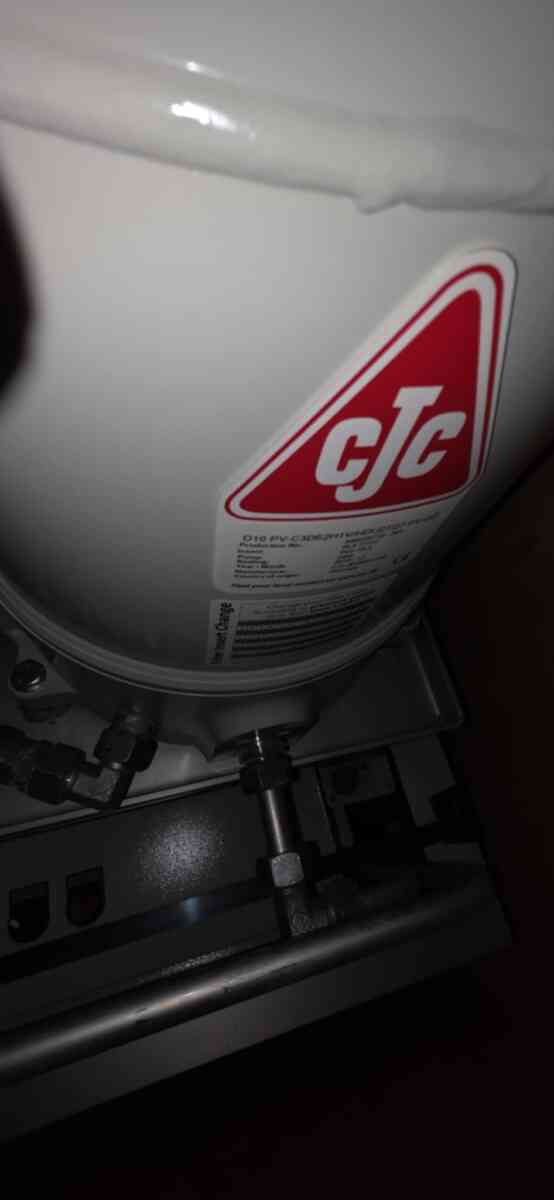

Type: CJC Desorber / Fine Filter System
Model: D10 PV-C3DE2H1V/hHDU27/27 PV-DZ
Filter Insert Type: BLA 27/27 – Number of filter inserts: 1 pcs
General arrangement: 7402102(rev B)
P&I diagram : 7000515 (rev C)
Supply Pump / motor : PV2-7,45l/h / ECS 63G4 B14S
Transfer Pump / Motor:PV2-9,60 l/h / ECS 63G4 B14S
Filter Pump / Motor : PV4-18,120 l/h / ECS 63G4 B14S
Air Pump: Elmo Rietschle 2BH1100
Preheater – Make: Jevi KW: 1,25
Noise Level <70 dB(A) Weight : 145 kg / 319 lbs
